Boom-Dual

Boom Mounted - Dual Arm Microscopes

Call our Sales Hotline at 1.866.650.2201 or

Price: $ 869.99
Model: bm003tb20m
Shipping/Handling/Insurance: $ 64.98

Product Overview //

Dual arm microscope stand with counterweights.

Need digital capture? Microscope includes a USB version jpg capture camera.
Camera shipped may look different than shown.

Monitor NOT Included.
Camera for live motion video microscopy is included.

Photos obtained using other camera equipment with this microscope.

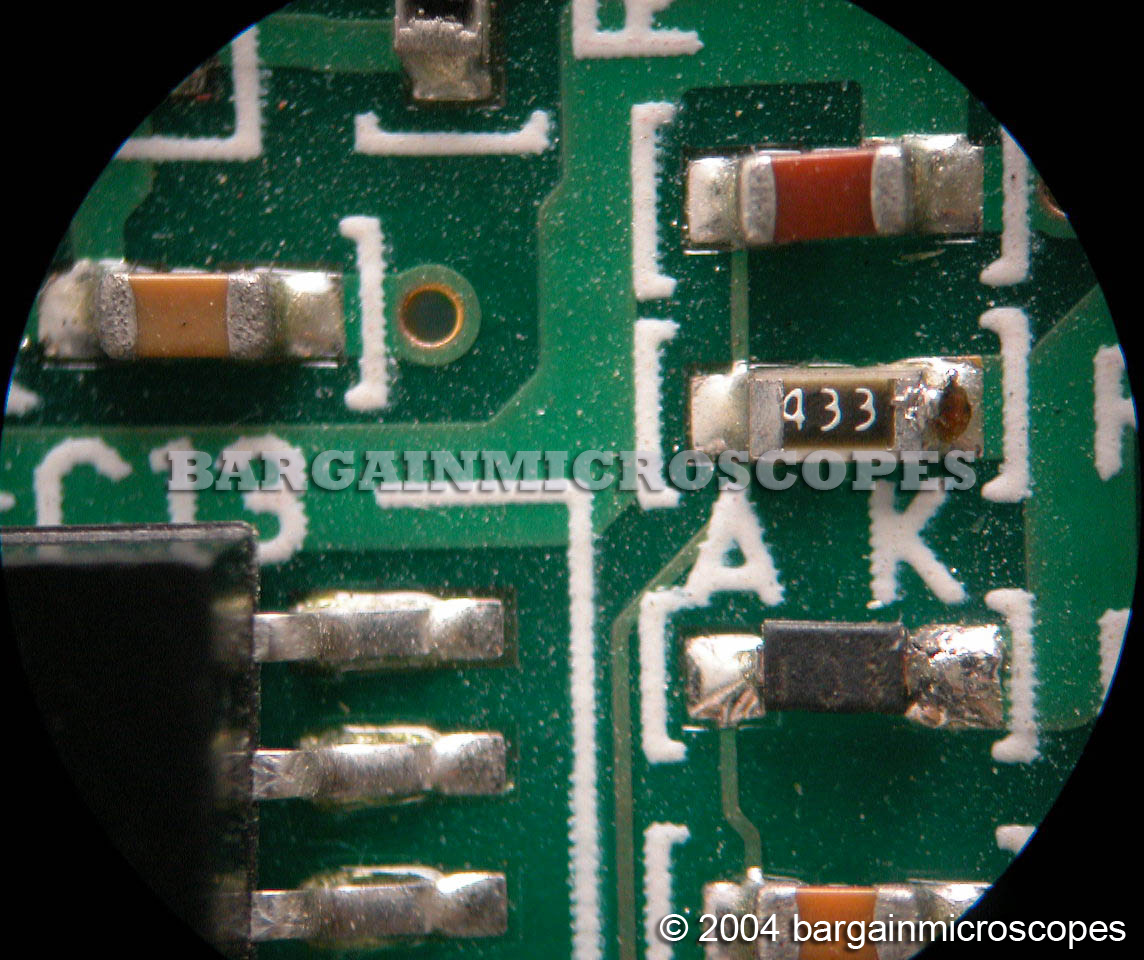

Circuit Board
Photo Thru 10x Eyepiece
15x Zoom Magnification
Excellent Quality!

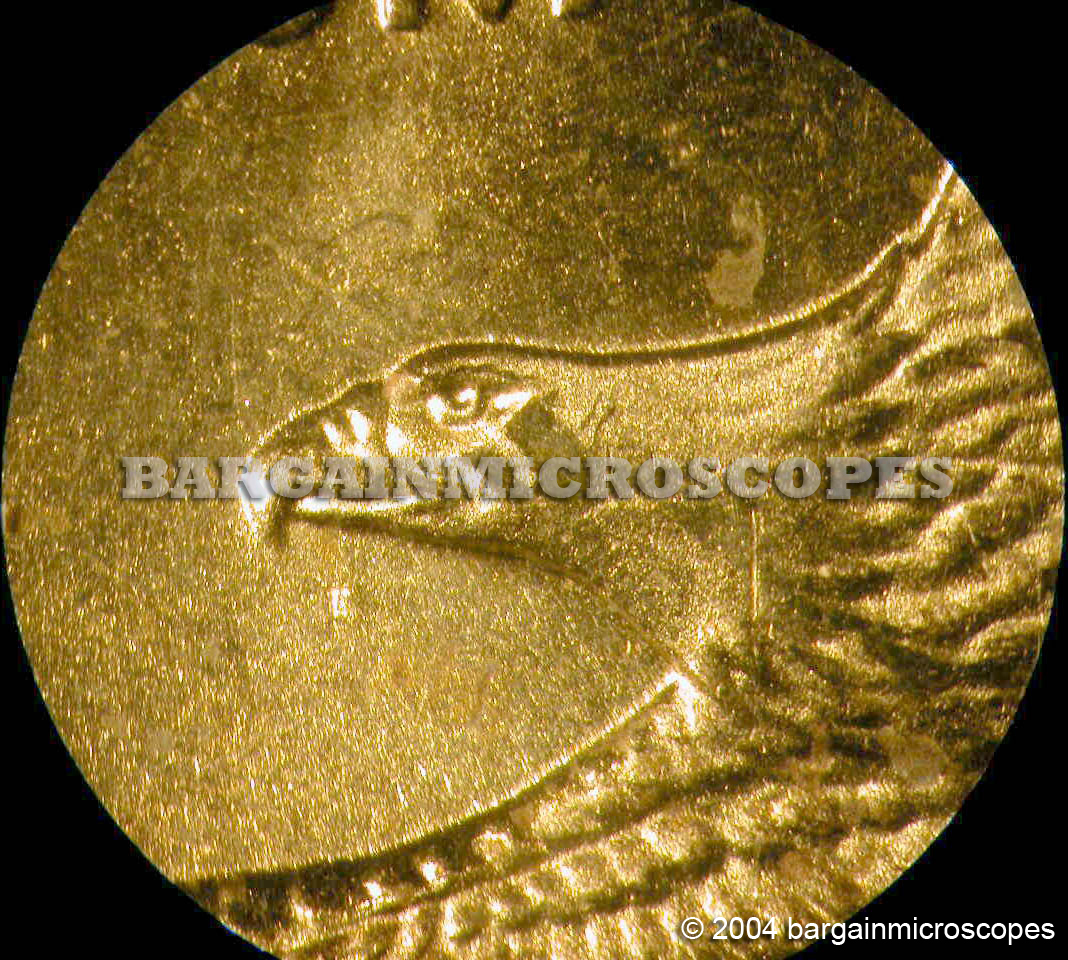

$1 Sacagawea Coin
Photo Thru 10x Eyepiece
30x Total Magnification
Lowest Price Anywhere!

Spider in Amber
Photo Thru 10x Eyepiece
45x Total Magnification

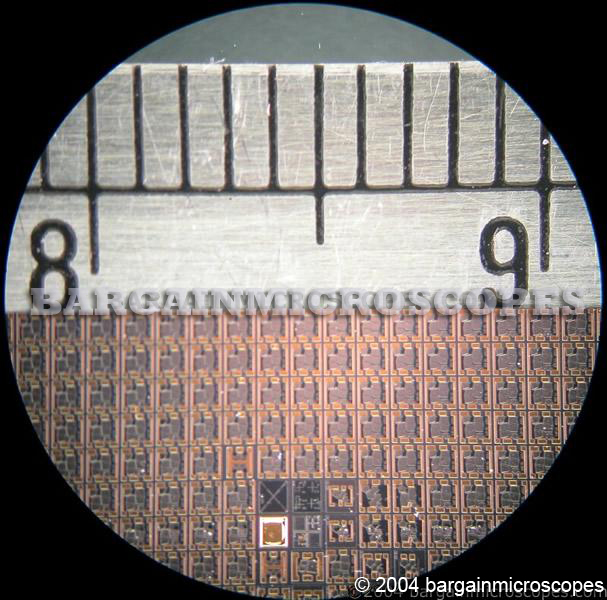

Semiconductor Wafer
Photo Thru 10x Eyepiece
15x Total Magnification
Clear Optics!

Other Specific Details

Better Eyepieces! Most scopes have small glass. This has the larger 25mm diameter glass for optimal stress free viewing!

Video Port and Camera Details

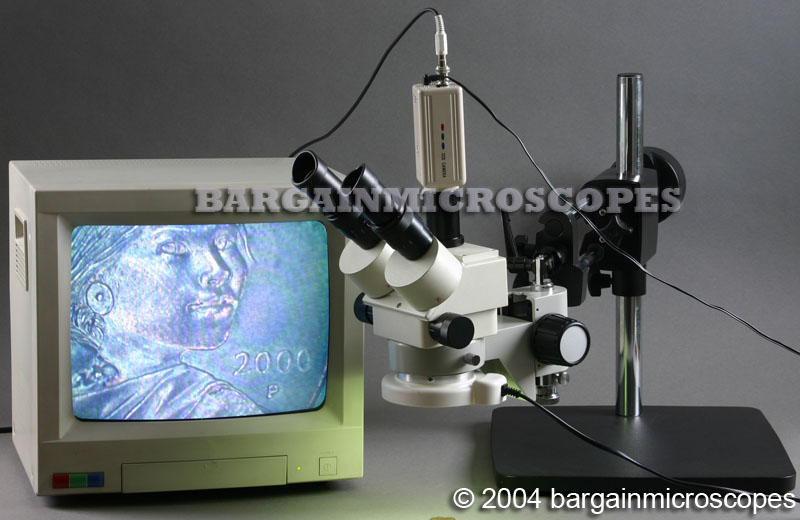

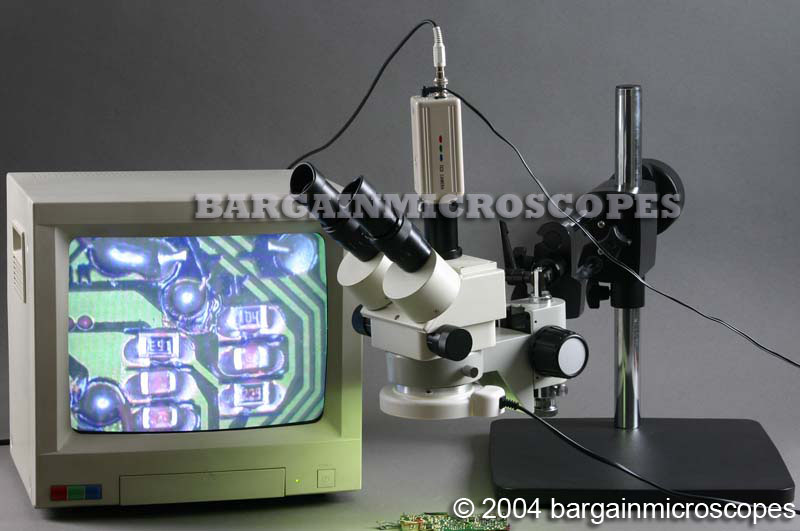

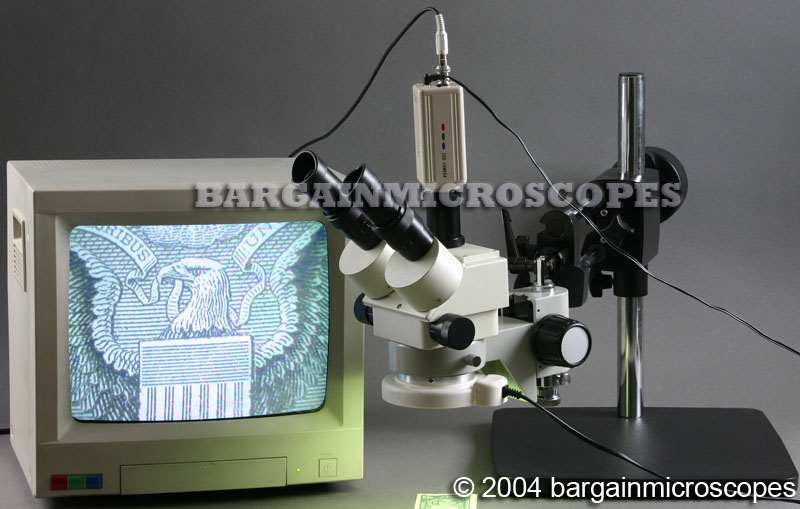

Includes a Complete Video Microscopy System!
CCD Color Video Camera System for Output to Devices accepting NTSC Video Signal (TV’s, CCTV Monitors, VCR’s, or Computer via Video Capture Device).
The CCTV Display Monitor is Not Included.
Works on most Televisions and VCR’s for Viewing and Recording of Full Motion Video!
Display the Image for All to See!
Included Camera Details: 1/3 Inch CCD Color Video Camera, NTSC Video Output Format, 320 Horizontal Lines Resolution, Low Light Requirement. (Email for PAL Format).
Includes Video Cable with RCA Fitting to easily connect to your Display Device.

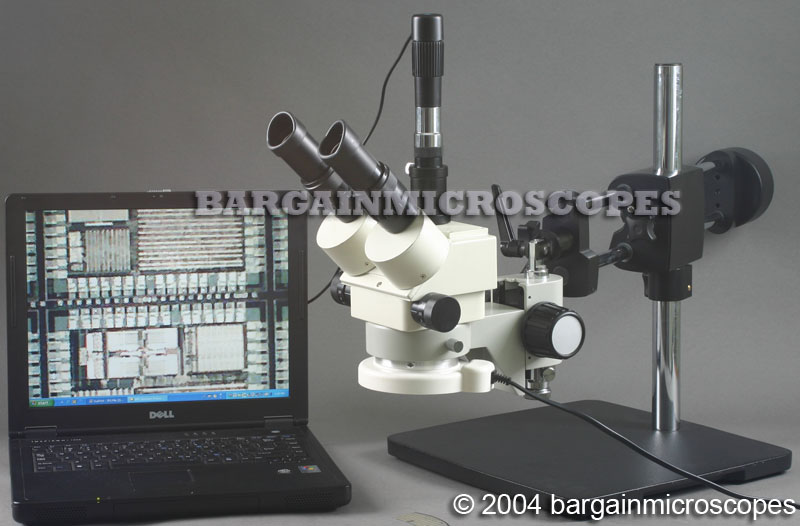

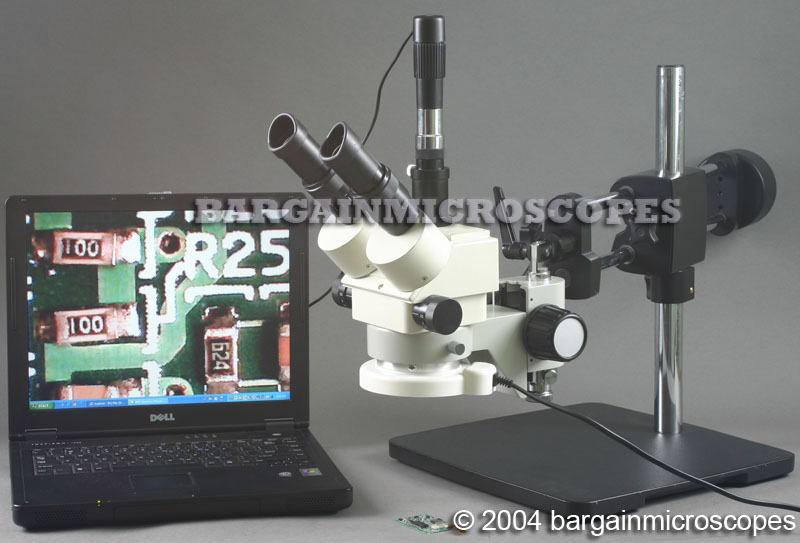

USB Computer Connectivity: Capture Digital Still Images and Live Full Motion Video on Your Computer!
A second camera is also included. It is a USB connected digital camera with 640×480 pixel resolution.

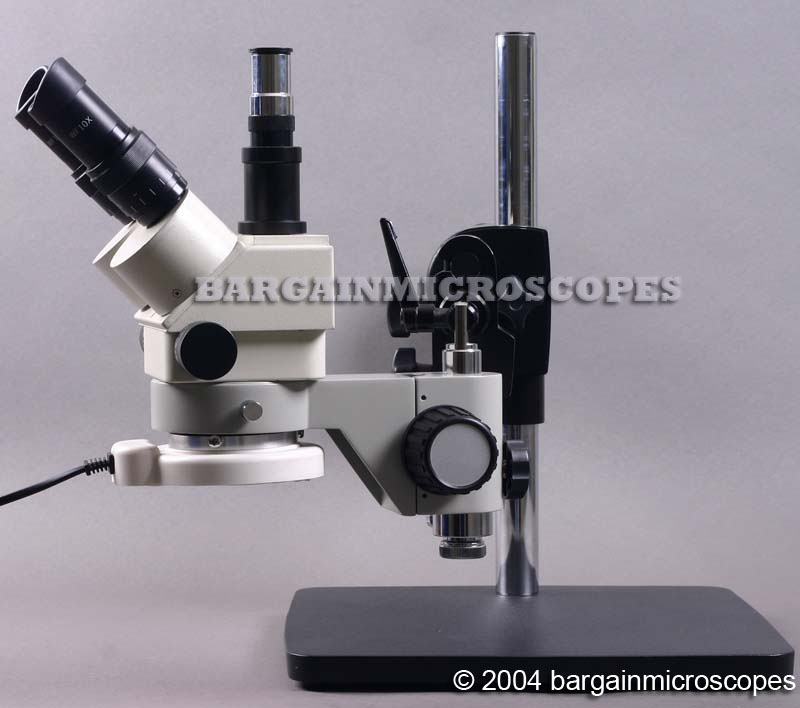

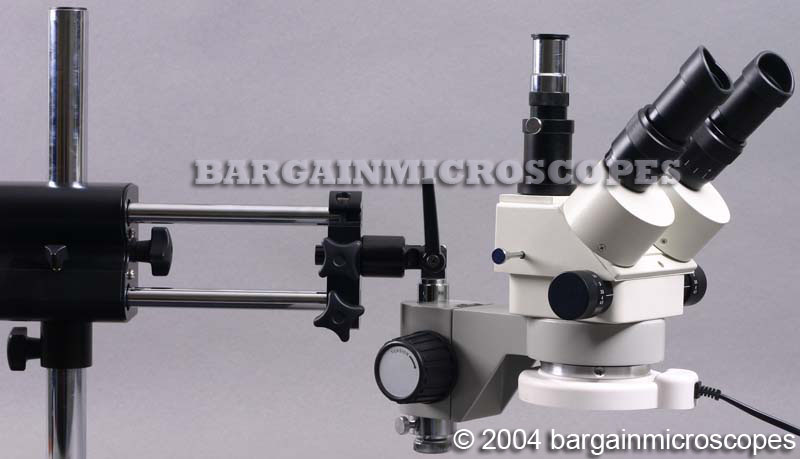

Boom Stand Details

Heavy Duty Dual Arm Boom Stand for Extra Rigidity than a Normal Stand.

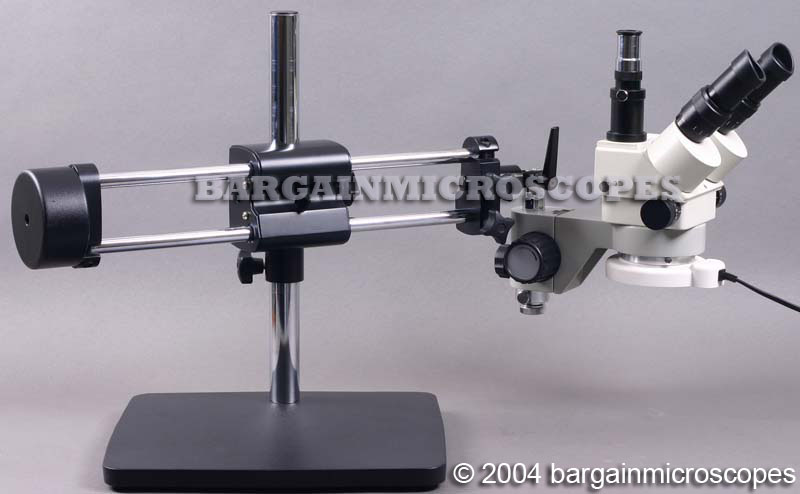

This Boom Stand has two horizontal bars with counterweight on the opposite end as the scope head.
This is a superior design and significantly heavier and stronger than a normal boom.
This Boom Stand provides Multi-Axis Rotation so the Scope’s Head can be rotated to most any angle or position.
This boom gives great flexibility, allowing the head to be raised, lowered, pulled over the working area, or pushed out of the way when not used.

Magnification and Eyepieces

3.5 - 90x Continuous Zoom Magnification!
With Bottom Lens (3.5 - 22.5x), w/o Bottom Lens (7 - 45x). Double magnification with 20x eyepiece set.
Wide Field 10x and 20x Eyepiece Sets Included.
Includes 0.5x Bottom Lens. This lens decreases magnification and approximately doubles working distance. A greater working distance allows more room to get your hands and tools under the scope head.

Illumination

Head - Interpupillary Distance - Diopter

Focusing and Working Distance

Focusing Knobs on Both Sides of Focusing Holder to Raise/Lower Head into Focus.
Rack and Pinion Steel Gears to Raise/Lower Focusing Holder.
Working Distance, 92mm - w/o Bottom Lens on, (131mm w/ Bottom Lens on), This is the distance under the scope head as it is in focus. This is a reasonably good distance to allow room for hands and tools under the scope.

Size and Weight

Included Items

Includes Rubber Eye Guards for Blocking Stray Light.
Includes Dust Cover.
Includes phototube with standard 23mm internal diameter for attaching standard microscope photography equipment.
Includes 1x c-mount for attaching standard ccd video camera equipment.

Additional Information

Manufacturer\’s Warranty

Warranty is 5 years on all microscope equipment.
The microscope warranty covers problems arising from normal usage.
We will repair or replace your defective microscopy equipment as needed during the warranty period.
