Boom-Dual

Boom Mounted - Dual Arm Microscopes

Call our Sales Hotline at 1.866.650.2201 or

Email sales@bargainmicroscopes.com

10X - 30X MAGNIFICATION
STEREOSCOPIC TRINOCULAR
DUAL ARM BOOM STAND
BOOM MICROSCOPE
VIDEO AND USB CAMERAS

Price: $ 599.99
Model: bm01atb20m
Shipping/Handling/Insurance: $ 64.98

Both USB computer connected camera and CCD video camera are included.
Laptop/Monitor are not included.

Product Overview //

Good Quality Stereo Trinocular Microscope on Boom Stand!
Great for Repair of Small Items or for Circuit Board Repair and Rework!
High Quality Bright and Clear Magnified Images!
Great Economical Price! Priced Much Lower than Competition!

Heavy counterweighted microscope stand for extra stability of stereo microscope.

Ability to capture digital images with included microscope camera. Connect via USB port.
Picture shows microscope camera. Actual shipped camera may look different.

CCD video live motion color camera with mounting adapter included.
CCTV monitor not included.

All images taken using this microscope and included camera.

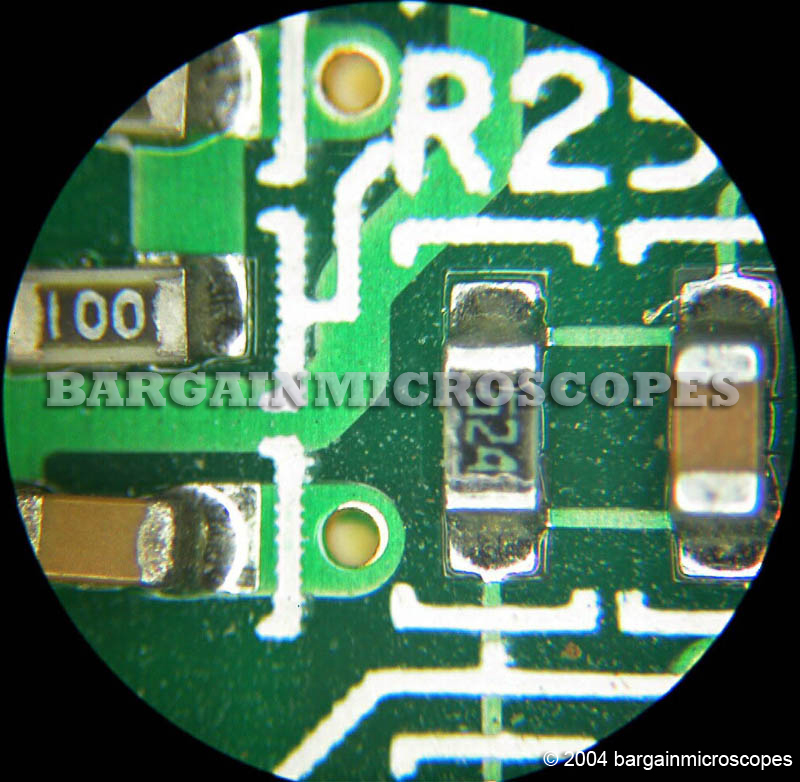

Circuit Board
Photo Thru 10x Eyepiece
3x Objective
30x Total Magnification
Excellent Quality!

Beetle
Photo Thru 10x Eyepiece
10x Total Magnification

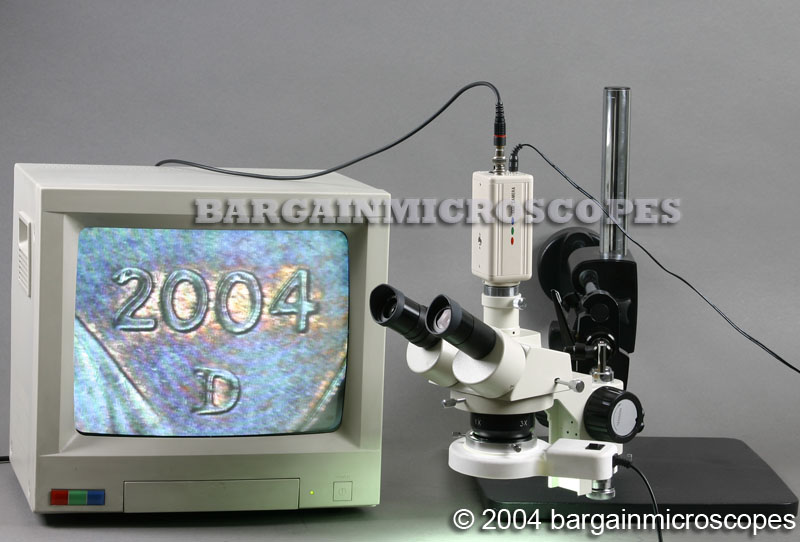

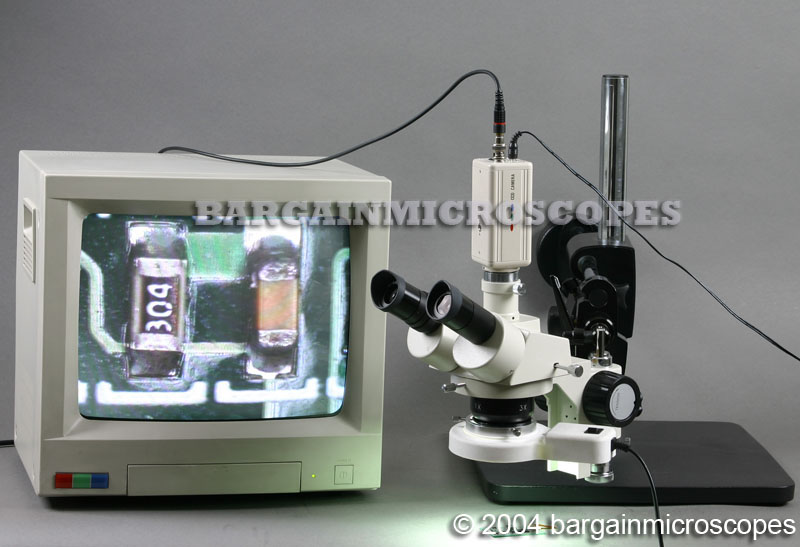

Video Port and Camera Details

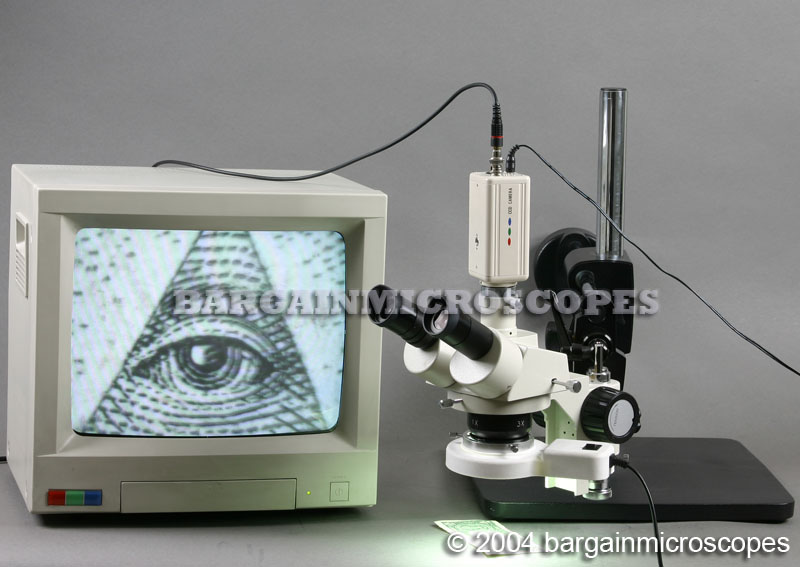

Includes a Complete Video Microscopy System!
CCD Color Video Camera System for Output to Devices accepting NTSC Video Signal (TV’s, CCTV Monitors, VCR’s, or Computer via Video Capture Device).
The CCTV Display Monitor is Not Included.
Works on most Televisions and VCR’s for Viewing and Recording of Full Motion Video!
Display the Image for All to See!
Included Camera Details: 1/3 Inch CCD Color Video Camera, NTSC Video Output Format, 320 Horizontal Lines Resolution, Low Light Requirement. (Email for PAL Format).
Includes Video Cable with RCA Fitting to easily connect to your Display Device.

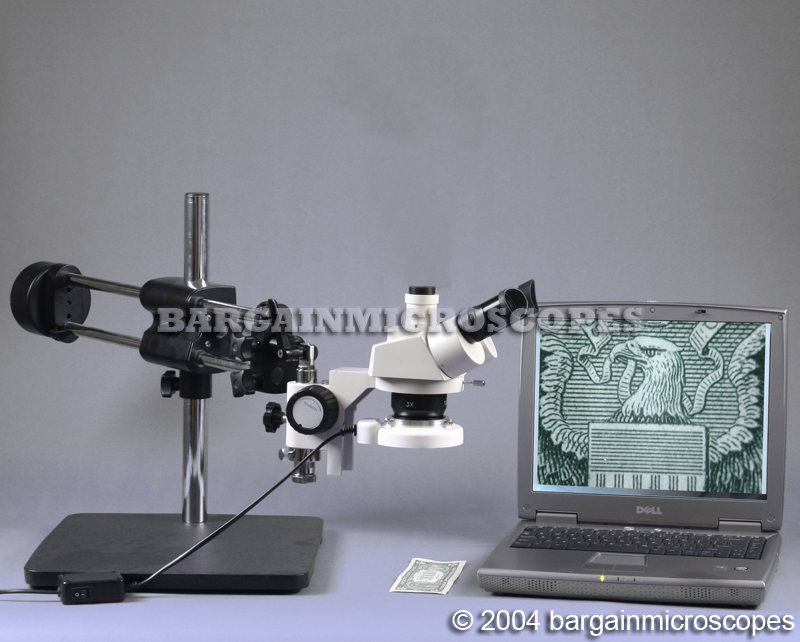

USB Computer Connectivity: Capture Digital Still Images and Live Full Motion Video on Your Computer!
A second camera is also included. It is a USB connected digital camera with 640×480 pixel resolution.

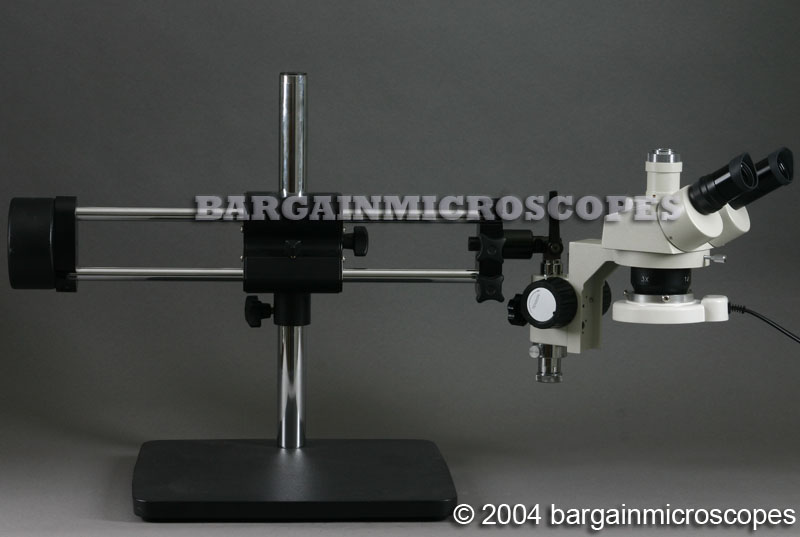

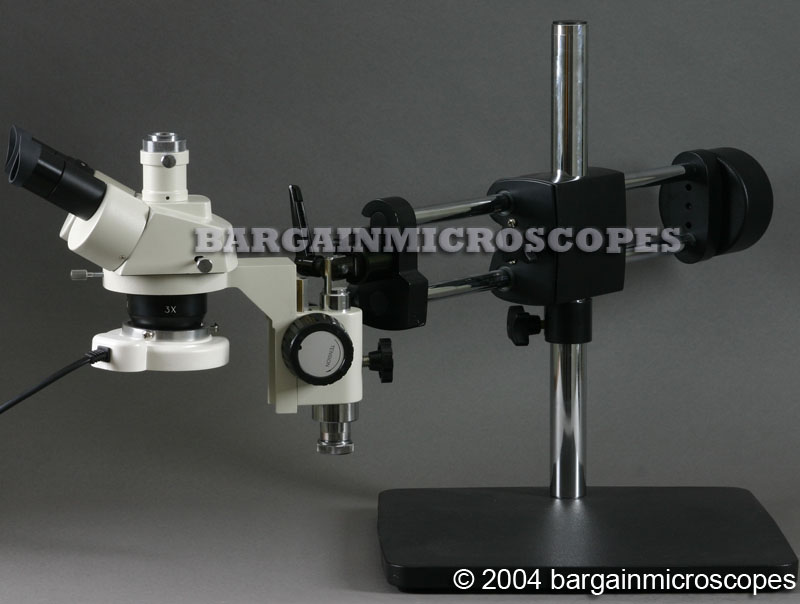

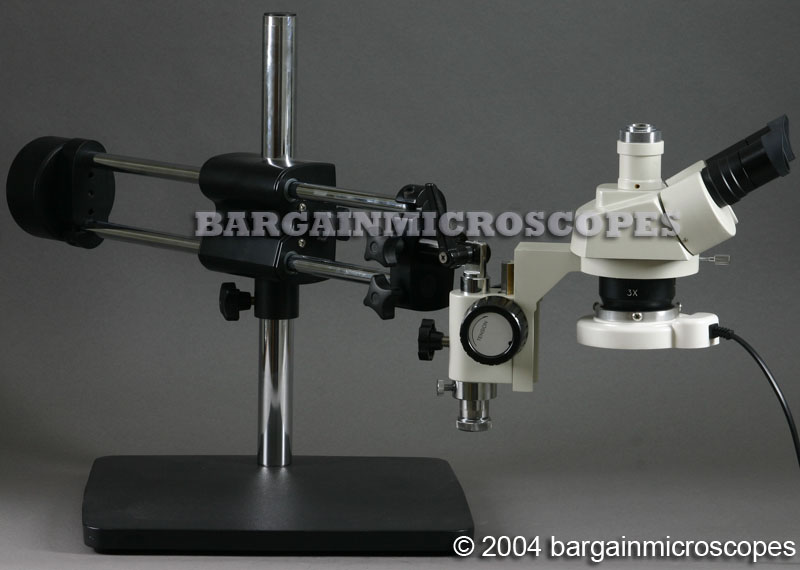

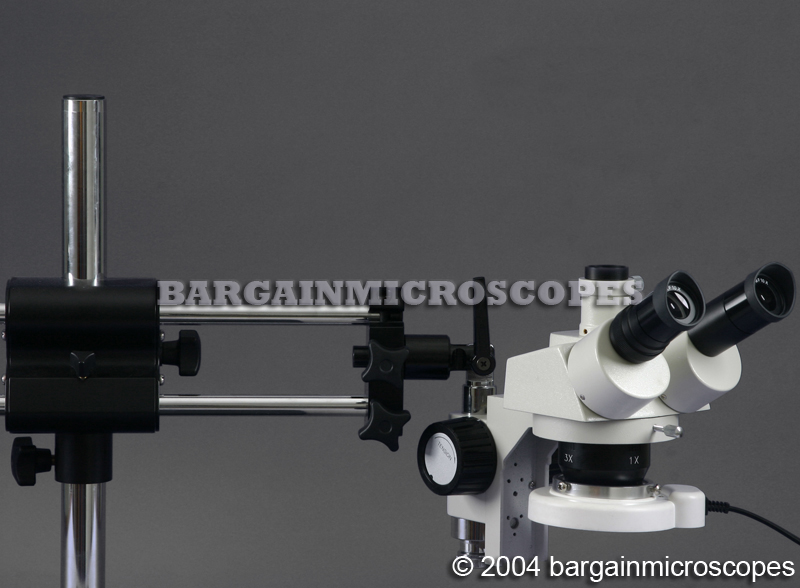

Boom Stand Specifications

Extra Sturdy Boom Stand for Maximum Versatility and Working Area!
The Dual Arm with Counterweight on this Boom Stand gives Better Stability than a Normal Stand.
Multi-Axis Rotation: This Boom Stand can rotate the scope head on any angle to view hard to see places. This is something that few booms can do. For example, if checking solder connections on a circuit board, this head can be rotated for better inspection.

Eyepieces and Magnification

Fixed Magnification: 5x, 10x, 15x, 30x! (5x/15x w/ Included Bottom Lens on, 10x/30x w/o Bottom Lens on).
Eyepiece Set Included: 30mm Wide Field 10x.
Bottom Lens Included: 0.5x. When present, this will approximately double the working distance as the scope head is elevated farther from the specimen when in focus.

Illumination

Includes Fluorescent Ring Light for Bright and Even Illumination.
Spare ring fluorescent bulb is included.

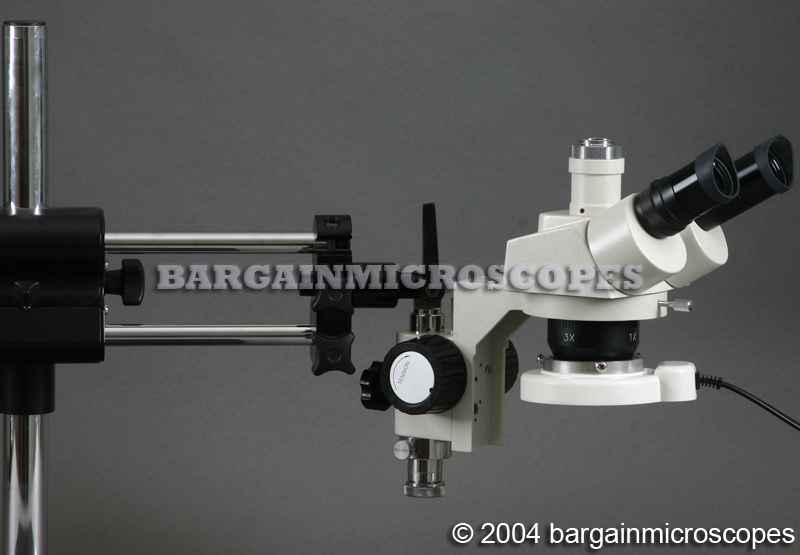

Head - Interpupillary Distance - Diopter

45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
Adjusts to the Distance Between your Eyes: 50 to 79mm InterPupillary Distance.
Diopter Adjustment to Correct for Your Specific Vision Needs.

Focusing and Working Distance

Focusing Knobs on Both Sides of Focusing Holder to Raise/Lower Head into Focus.
Rack and Pinion Steel Gears to Raise/Lower Focusing Holder.
Working Distance, 105mm - w/o Bottom Lens on, (225mm w/ Bottom Lens on), This is the distance under the scope head as it is in focus. This is a reasonably good distance to allow room for hands and tools under the scope.

Frame - Base - Size - Weight

Heavy Solidly Built Boom Stand.
Solid Steel Boom Stand Base Plate.
Shipping Weight of Boom Stand (no scope head) is 51 Lbs.

Included Items

Includes Rubber Eye Guards for Blocking Stray Light.
Includes Dust Cover.
Includes phototube with standard 23mm internal diameter for attaching standard microscope photography equipment.
Includes 1x c-mount for attaching standard ccd video camera equipment.

Other Specifications

Ships in Molded Styrofoam Container for protection.
Manufactured under ISO: 9001 Standards.
110 VAC Power Requirement (Contact us about 220V availability).
High Quality Solid Construction!
Precision Made Glass Optics!
Brand New, Never Used!

Manufacturer\’s Warranty

5 Year microscope manufacturer warranty. All included microscopy accessories are covered.
All microscope parts are guaranteed to be free of defects and should function properly. If you need service or repair, contact us and we will fix or replace the defective part.
